PROGRAMADOR DE MEMORIA EZP2013 FLASH, BIOS, EEPROM

Programador de bios (Flash 24 25 93, chips de memoria EEPROM.) por USB de alta velocidad. Es la versión mejorada del EZP2010. Soporta Windows 2000, XP, 7,8 y 10.

Soporta casi todos los Fabricantes Actualmente en el mercado chips de la serie 24,25, 93

CARACTERISTICAS:

Interfaz USB 2.0: velocidad de hasta 12Mbps.

Lectura y escritura rápida. Leer sólo requiere tres segundos (aproximados). Escribir sólo nueve segundos (aproximados).

Identificación automática de modelos de chips (la mayoría).

Selecciona automáticamente el voltaje de suministro de chips.

Soporta Flash 24 25 93, chips de memoria EEPROM.

Pequeño, fácil de transportar.

Soporta Windows 2000, XP, 7,8 y 10.

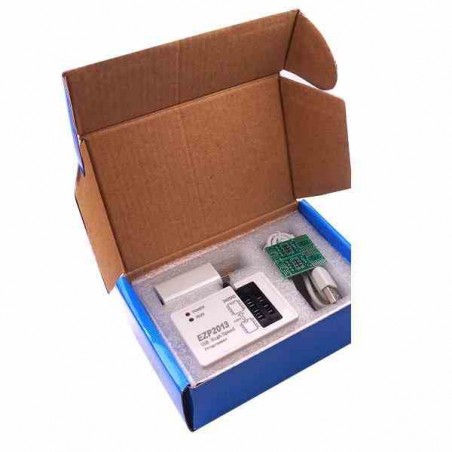

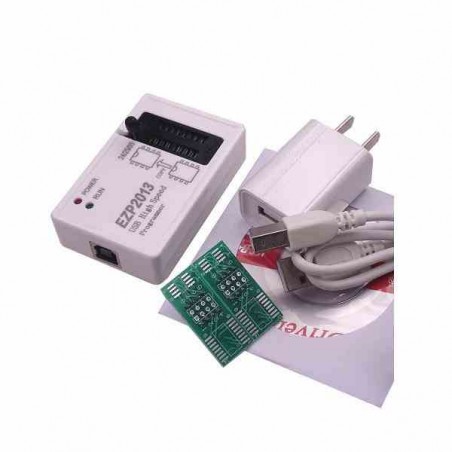

El paquete incluye

1x Programador de alta velocidad host uno.

1x Cable de datos USB de alta velocidad

1x Placa adaptadora SOP8 / SOP16 a placa simple DIP8 (con una fila de pines)

1x Adaptador de voltaje

1x CD con software

ESPECIFICACIONES TECNICAS:

Listado de compatibilidad:

******************** 25 SPI FLASH *************************** ****************************************

AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032

ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641

EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128

Es: ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32

ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA

MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D

NexFlash: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC: PM25LV512A, PM25LV010A, Pm25LV020, Pm25LV040, PM25LV080B, PM25LV016B

Saifun: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

SPANSION: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A

SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C

ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128

WINBOND: W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L, W25P80, W25X80, W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64

******************** 24 EEPROM **************************** ***************************************

ATMEL: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

Catalizador: CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512, CAT24WC512, CAT24C1024, CAT24WC1024

Común: 24C00 3 V, 24C00 5 V, 24C01 3 V, 24C01 5 V, 24C02 3 V, 24C02 5 V, 24C04 3 V, 24C04 5 V, 24C08 3 V, 24C08 5 V, 24C16 3 V, 24C16 5 V, 24C32 3 V, 24C32 5 V, 24C64 3 V, 24C64 5 V, 24C128 3 V, 24C128 5 V, 24C256 3 V, 24C256 5 V, 24C512 3 V, 24C512 5 V, 24C1024 3 V, 24C1024 5 V

FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L, FM24C1024L

HOLTEK: HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24C512, HT24C1024

ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

Microchip: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24LC16B, 24AA32, 24LC32, 24AA64, 24FC64, 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024

NSC: NSC24C02, NSC24C02L, NSC24C64

RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64

XICOR: X24C01, X24C02, X24C04, X24C08, X24C16

******************** 93 EEPROM **************************** ***************************************

AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC: ATC93C46, ATC93LC46 (16bit), ATC93LC46 (16bit)-SOP8, ATC93LC46 (8Bit), ATC93LC46 (8Bit)-SOP8, ATC93C56, ATC93LC56 (16bit), ATC93LC56 (16bit)-SOP8, ATC93LC56 (8Bit), ATC93LC56 (8Bit) -SOP8, ATC93C66, ATC93LC66 (16bit), ATC93LC66 (16bit)-SOP8, ATC93LC66 (8Bit), ATC93LC66 (8Bit)-SOP8

ATMEL: AT93C46 (16bit), AT93C46 (16bit)-SOP8, AT93C46 (8Bit), AT93C46 (8Bit)-SOP8, AT93C46A, AT93C56 (16bit), AT93C56 (16bit)-SOP8, AT93C56 (8Bit), AT93C56 (8Bit) -SOP8, AT93C57 (16bit), AT93C57 (16bit)-SOP8, AT93C57 (8Bit), AT93C57 (8Bit)-SOP8, AT93C66 (16bit), AT93C66 (16bit)-SOP8, AT93C66 (8Bit), AT93C66 (8Bit)-SOP8, AT93C86 (16bit), AT93C86 (16bit)-SOP8, AT93C86 (8Bit), AT93C86 (8Bit)-SOP8

Catalizador: CAT93C46 (16bit), CAT93C46 (8Bit), CAT93C46A, CAT93C46I, CAT93C56 (16bit), CAT93C56 (8Bit), CAT93C56A, CAT93C57 (16bit), CAT93C57 (16bit)-SOP8, CAT93C66 (16bit), CAT93C66 (8Bit), CAT93C66A, CAT93C86 (16bit), CAT93C86 (8Bit)

Común: 93C46 (16bit), 93C46 (8Bit), 93C56 (16bit), 93C56 (8Bit), 93C66 (16bit), 93C66 (8Bit), 93C86 (16bit), 93C86 (8Bit)

EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

FAIRCHILD: FM93C06AM8 (16bit), FM93C06AM8 (8Bit), FM93C06M8, FM93C06N, FM93C46AM8 (16bit), FM93C46AM8 (8Bit), FM93C46AN (16bit), FM93C46AN (8Bit), FM93CS46 (16bit), FM93C56AN (16bit), FM93C56AN (8Bit) , FM93CS56 (16bit), FM93C66AM8 (16bit), FM93C66AM8 (8Bit), FM93C66AN (16bit), FM93C66AN (8Bit), FM93C66B, FM93C66M8 (16bit), FM93C66MT8 (16bit), FM93C66N (16bit), FM93CS66 (16bit), FM93C86AM8 (16bit), FM93C86AM8 (8Bit), FM93C86AN (16bit), FM93C86AN (8Bit)

HOLTEK: HT93LC46A (16bit), HT93LC46A (8Bit), HT93LC56A (16bit), HT93LC56A (8Bit), HT93LC66A (16bit), HT93LC66A (8Bit)

TIC: ICT93C46 (16bit), ICT93C46 (8Bit), ICT93C56 (16bit), ICT93C56 (8Bit), ICT93C66 (16bit), ICT93C66 (8Bit)

ISSI: IS93C46 (16bit), IS93C56 (16bit), IS93C66 (16bit)

Microchip: 93C06 (16bit), 93C06 (16bit)-SOP8, 93AA46 (16bit), 93AA46 (8Bit), 93AA46 (8Bit)-SOP8, 93C46 (16bit), 93C46 (16bit)-SOP8, 93C46A, 93C46B, 93LC46 (16bit) , 93LC46 (16bit)-SOP8, 93LC46 (8Bit), 93LC46 (8Bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56 (16bit), 93AA56 (8Bit), 93AA56 (8Bit)-SOP8, 93c56 (16bit) , 93c56 (16bit)-SOP8, 93c56 (8Bit), 93c56 (8Bit)-SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56 (16bit), 93LC56 (16bit)-SOP8, 93LC56 (8Bit), 93LC56 (8Bit)-SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66 (16bit), 93AA66 (8Bit), 93AA66 (8Bit)-SOP8, 93C66 (16bit), 93C66 (16bit)-SOP8, 93C66 (8Bit), 93C66 (8Bit)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66 (16bit), 93LC66 (16bit)-SOP8, 93LC66 (8Bit), 93LC66 (8Bit)-SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76 (16bit), 93AA76 (8Bit), 93C76 (16bit), 93C76 (8Bit), 93LC76 (16bit), 93LC76 (8Bit), 93LC76A, 93LC76B, 93AA86 (16bit), 93AA86 (8Bit), 93C86 (16bit), 93C86 (8Bit), 93LC86 (16bit), 93LC86 (8Bit), 93LC86A, 93LC86B

NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

******************** 25 EEPROM **************************** ***************************************

ATMEL: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512

Catalizador: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S

Común: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512

Microchip: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

RAMTRON: FM25C160, FM25640, FM25CL64

ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

Ti: TI2532, TI2532A, TI2564

XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512

Referencia de producto: EZP2013
